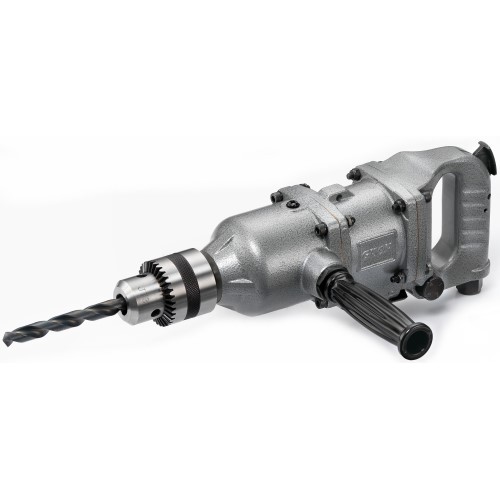

Gison 5/8" (16mm) Heavy Duty Reversible Air Drill GP-26D
The Industrial Standard for High-Torque Pneumatic Drilling
Engineered for Heavy Industry
When 1/2" drills reach their limit, the Gison GP-26D takes over. This 5/8" (16mm) heavy-duty reversible air drill is designed specifically for aggressive drilling in iron, steel, aluminium, and heavy timber. Weighing in at 6.4kg, its substantial build quality is a testament to the robust gear-type internal design that ensures longevity under constant industrial load.
Key Performance Benefits
- High Torque Output: Optimised for large-diameter drilling where stalling is not an option.
- Reversible Versatility: Effortlessly switch between forward and reverse modes, making it ideal for clearing stuck bits or heavy-duty fastening.

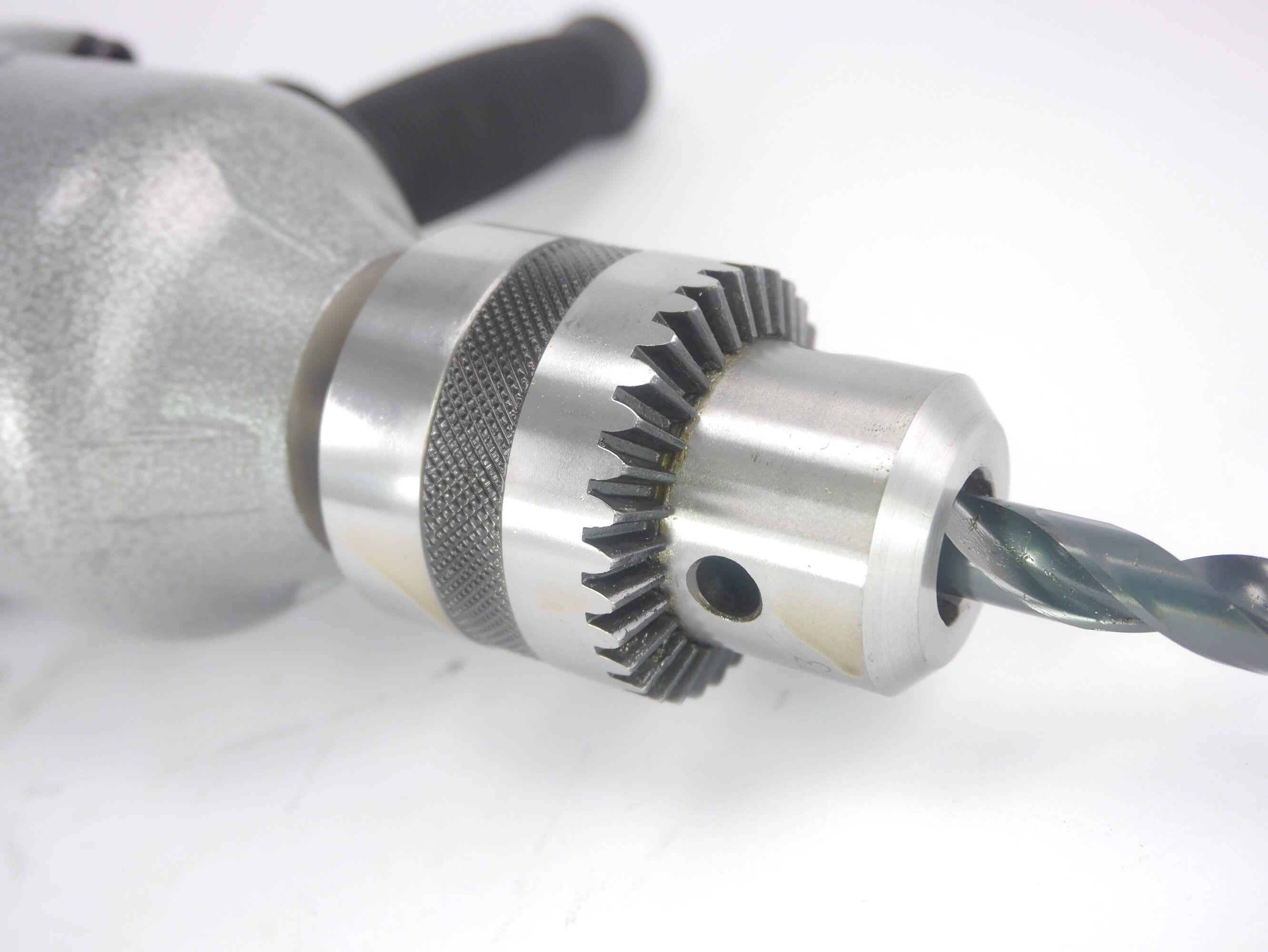

- Built to Perform: Features a solid 5/8" keyed chuck for maximum bit security and an auxiliary side handle for balanced operator control.
- Low Maintenance: The pneumatic motor has fewer moving parts than electric counterparts, making it safer for hazardous environments and cheaper to maintain over time.
Technical Specifications
| Drill Capacity | 5/8" (16 mm) |
|---|---|
| Free Speed | 600 ~ 1,000 rpm |
| Net Weight | 6.40 kg |
| Overall Length | 370 mm |
| Air Consumption | 0.80 m³/min (28.2 SCFM) |
| Air Inlet Size | 3/8" (Large flow) |
| Hose Size (I.D.) | 10 mm |
| Sound Pressure | 96 dBA |
| Operating Pressure | 90 psi (6.3 kg/cm²) |
- Short Description:
Gison 5/8" H/Duty Air Drill
